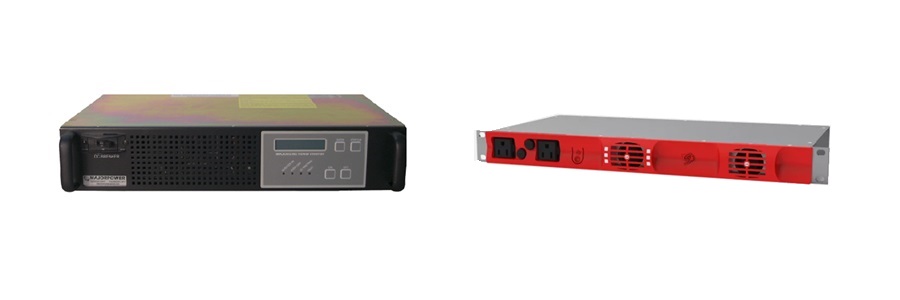

DataCenter-Grade Inverters with 120VAC 60Hz output (stand-alone units / non-modular)

Mfc	Specified Power Item Reference Number	Description	Power Rating	AC Output	phase	Hz	DC Voltage Input
CET	189-1110-100100	Y-One 500 - 48/120 (UL), Inverter (no AC Input), DC input range = 40 to 60vdc with datacenter grade output of 120VAC (measured L-N), 0.5kVA/0.4kW module rating with max parallel ability up to kVA/kW. UL Certified	0.5kVA / 0.4kW	120	single phase	60Hz	48vdc
CET	189-1110-100200	Y-One 500 - 48/120 (non-UL), Inverter (no AC Input), DC input range = 40 to 60vdc with datacenter grade output of 120VAC (measured L-N), 0.5kVA/0.4kW module rating with max parallel ability up to kVA/kW. non UL	0.5kVA / 0.4kW	120	single phase	60Hz	48vdc
Major Power	188-1010-100100	1kVA/800W Datacenter Grade Inverter with Sine Wave Output and integrated utility bypass, 19" or 23" rack mountable, DC input range between 20-30VDC, Output 120VAC, 2RU height (3.5")	1kVA / 0.8kW	120	single phase	60Hz	24vdc
Major Power	188-1010-100200	1kVA/800W Datacenter Grade Inverter with Sine Wave Output and integrated utility bypass, 19" or 23" rack mountable, DC input range between 40-60VDC, Output 120VAC, 2RU height (3.5")	1kVA / 0.8kW	120	single phase	60Hz	48vdc
Major Power	188-1010-100400	1kVA/800W Datacenter Grade Inverter with Sine Wave Output and integrated utility bypass, 19" or 23" rack mountable, DC input range between 100-150VDC, Output 120VAC, 2RU height (3.5")	1kVA / 0.8kW	120	single phase	60Hz	120vdc
Major Power	188-1010-100300	2kVA/1.6kW Datacenter Grade Inverter with Sine Wave Output and integrated utility bypass, 19" or 23" rack mountable, DC input range between 40-60VDC, Output 120VAC, 2RU height (3.5")	2kVA / 1.6kW	120	single phase	60Hz	48vdc
Major Power	188-1010-100500	2kVA/1.6kW Datacenter Grade Inverter with Sine Wave Output and integrated utility bypass, 19" or 23" rack mountable, DC input range between 100-150VDC, Output 120VAC, 2RU height (3.5")	2kVA / 1.6kW	120	single phase	60Hz	120vdc
