| Mfc |
Specified Power Item
Reference Number |
Description |
Power Rating |
AC Output |
phase |
Hz |
DC Voltage Input |
| CET |
189-1100-100100 |
e-one
3 - 48/230, Inverter (no AC Input), DC input range = 40 to
60vdc, AC input range = to VAC with datacenter
grade output of 230VAC (measured L-N), 0.35kVA/0.3kW module
rating with max parallel ability up to kVA/kW. |
0.35kVA / 0.3kW |
230 |
single
phase |
50Hz
(only) |
48vdc |
| INVT |
186-1550-100100 |

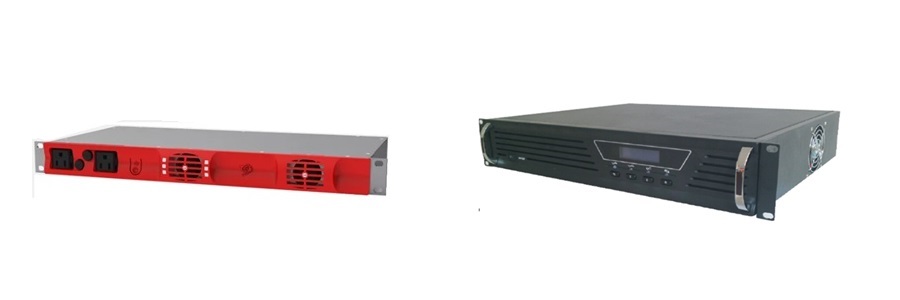

0.5kVA/0.4kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 12vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 14.02"D, 18.7 Lbs. |
0.5kVA
/ 0.4kW |
220 |
single
phase |
50Hz
(only) |
12vdc |
| INVT |
186-1550-100200 |
0.5kVA/0.4kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 24vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 14.02"D, 18.7 Lbs. |
0.5kVA
/ 0.4kW |
220 |
single
phase |
50Hz
(only) |
24vdc |
| INVT |
186-1550-100400 |
1.5kVA/1.2kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 24vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 14.02"D, 18.7 Lbs. |
1.5kVA
/ 1.2kW |
220 |
single
phase |
50Hz
(only) |
24vdc |
| INVT |
186-1550-103400 |
10kVA/kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 220vdc input,
VAC single phase (L1+N+G) 50Hz sinewave output, equipped with
AC bypass, "W x "H x "D, Lbs. |
10kVA
/ 8kW |
220 |
single
phase |
50Hz
(only) |
220vdc |
| INVT |
186-1550-102000 |
10kVA/kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 48vdc input,
VAC single phase (L1+N+G) 50Hz sinewave output, equipped with
AC bypass, "W x "H x "D, Lbs. |
10kVA
/ kW |
220 |
single
phase |
50Hz
(only) |
48vdc |
| INVT |
186-1550-102700 |
10kVA/kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 110vdc input,
VAC single phase (L1+N+G) 50Hz sinewave output, equipped with
AC bypass, "W x "H x "D, Lbs. |
10kVA
/ kW |
220 |
single
phase |
50Hz
(only) |
110vdc |
| INVT |
186-1550-100300 |
1kVA/0.8kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 24vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 14.02"D, 18.7 Lbs. |
1kVA /
0.8kW |
220 |
single
phase |
50Hz
(only) |
24vdc |
| INVT |
186-1550-100800 |
1kVA/0.8kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 24vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 14.02"D, 18.7 Lbs. |
1kVA /
0.8kW |
220 |
single
phase |
50Hz
(only) |
24vdc |
| INVT |
186-1550-101400 |
1kVA/0.8kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 48vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 14.02"D, 18.7 Lbs. |
1kVA /
0.8kW |
220 |
single
phase |
50Hz
(only) |
48vdc |
| INVT |
186-1550-102100 |
1kVA/0.8kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 110vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 14.02"D, 18.7 Lbs. |
1kVA /
0.8kW |
220 |
single
phase |
50Hz
(only) |
110vdc |
| INVT |
186-1550-102800 |
1kVA/0.8kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 220vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 14.02"D, 18.7 Lbs. |
1kVA /
0.8kW |
220 |
single
phase |
50Hz
(only) |
220vdc |
| INVT |
186-1550-100900 |
1kVA/0.8kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, multi input
48VDC, 110VDC, or 220VDC with 220VAC single phase (L1+N+G)
50Hz sinewave output, equipped with ≤5ms AC bypass, 18.98"W x
3.46"H x 14.02"D, 18.7 Lbs. |
1kVA
/ 0.8kW |
220 |
single phase |
50Hz
(only) |
multi
input 48vdc, 110vdc, or 220vdc |
| INVT |
186-1550-100600 |
2.5kVA/2kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 24vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, "W x "H x "D, 18.7 Lbs. |
2.5kVA
/ 2kW |
220 |
single
phase |
50Hz
(only) |
24vdc |
| INVT |
186-1550-100500 |
2kVA/1.6kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 24vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 14.02"D, 18.7 Lbs. |
2kVA /
1.6kW |
220 |
single
phase |
50Hz
(only) |
24vdc |
| INVT |
186-1550-101500 |
2kVA/1.6kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 48vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 14.02"D, 18.7 Lbs. |
2kVA /
1.6kW |
220 |
single
phase |
50Hz
(only) |
48vdc |
| INVT |
186-1550-102200 |
2kVA/1.6kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 110vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 14.02"D, 18.7 Lbs. |
2kVA /
1.6kW |
220 |
single
phase |
50Hz
(only) |
110vdc |
| INVT |
186-1550-102900 |
2kVA/1.6kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 220vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 14.02"D, 18.7 Lbs. |
2kVA /
1.6kW |
220 |
single
phase |
50Hz
(only) |
220vdc |
| INVT |
186-1550-101000 |
2kVA/1.6kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, multi input
48VDC, 110VDC, or 220VDC with 220VAC single phase (L1+N+G)
50Hz sinewave output, equipped with ≤5ms AC bypass, 18.98"W x
3.46"H x 14.02"D, 18.7 Lbs. |
2kVA
/ 1.6kW |
220 |
single phase |
50Hz
(only) |
multi
input 48vdc, 110vdc, or 220vdc |
| INVT |
186-1550-100700 |
3kVA/2.4kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 24vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 15.28"D, 18.7 Lbs. |
3kVA /
2.4kW |
220 |
single
phase |
50Hz
(only) |
24vdc |
| INVT |
186-1550-101600 |
3kVA/2.4kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 48vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 15.28"D, 18.7 Lbs. |
3kVA /
2.4kW |
220 |
single
phase |
50Hz
(only) |
48vdc |
| INVT |
186-1550-102300 |
3kVA/2.4kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 110vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 15.28"D, 18.7 Lbs. |
3kVA /
2.4kW |
220 |
single
phase |
50Hz
(only) |
110vdc |
| INVT |
186-1550-103000 |
3kVA/2.4kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 220vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 15.28"D, 18.7 Lbs. |
3kVA /
2.4kW |
220 |
single
phase |
50Hz
(only) |
220vdc |
| INVT |
186-1550-101100 |
3kVA/2.4kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, multi input
48VDC, 110VDC, or 220VDC with 220VAC single phase (L1+N+G)
50Hz sinewave output, equipped with ≤5ms AC bypass, 18.98"W x
3.46"H x 15.28"D, 18.7 Lbs. |
3kVA
/ 2.4kW |
220 |
single phase |
50Hz
(only) |
multi
input 48vdc, 110vdc, or 220vdc |
| INVT |
186-1550-101700 |
5kVA/3.5kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 48vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 15.28"D, 27.6 Lbs. |
5kVA /
3.5kW |
220 |
single
phase |
50Hz
(only) |
48vdc |
| INVT |
186-1550-102400 |
5kVA/3.5kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 110vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 15.28"D, 27.6 Lbs. |
5kVA /
3.5kW |
220 |
single
phase |
50Hz
(only) |
110vdc |
| INVT |
186-1550-103100 |
5kVA/3.5kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 220vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 3.46"H x 15.28"D, 27.6 Lbs. |
5kVA /
3.5kW |
220 |
single
phase |
50Hz
(only) |
220vdc |
| INVT |
186-1550-101200 |
5kVA/3.5kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, multi input
48VDC, 110VDC, or 220VDC with 220VAC single phase (L1+N+G)
50Hz sinewave output, equipped with ≤5ms AC bypass, 18.98"W x
3.46"H x 15.28"D, 27.6 Lbs. |
5kVA
/ 3.5kW |
220 |
single phase |
50Hz
(only) |
multi
input 48vdc, 110vdc, or 220vdc |
| INVT |
186-1550-101800 |
6kVA/4.2kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 48vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 6.93"H x 15.75"D, 37.5 Lbs. |
6kVA /
4.2kW |
220 |
single
phase |
50Hz
(only) |
48vdc |
| INVT |
186-1550-102500 |
6kVA/4.2kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 110vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 6.93"H x 15.75"D, 37.5 Lbs. |
6kVA /
4.2kW |
220 |
single
phase |
50Hz
(only) |
110vdc |
| INVT |
186-1550-103200 |
6kVA/4.2kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, 220vdc input,
220VAC single phase (L1+N+G) 50Hz sinewave output, equipped
with ≤5ms AC bypass, 18.98"W x 6.93"H x 15.75"D, 37.5 Lbs. |
6kVA /
4.2kW |
220 |
single
phase |
50Hz
(only) |
220vdc |
| INVT |
186-1550-101300 |
6kVA/4.2kW Rack Mount Telecom Grade Inverter, CPU controlled
SPWM technology with fault protection, local digital display,
RJ45 Interface and dry contact alarm functions, multi input
48VDC, 110VDC, or 220VDC with 220VAC single phase (L1+N+G)
50Hz sinewave output, equipped with ≤5ms AC bypass, 18.98"W x
6.93"H x 15.75"D, 37.5 Lbs. |
6kVA
/ 4.2kW |
220 |
single phase |
50Hz
(only) |
multi
input 48vdc, 110vdc, or 220vdc |
| INVT |
186-1550-101900 |
8kVA/kW Rack Mount Telecom Grade Inverter, CPU controlled SPWM
technology with fault protection, local digital display, RJ45
Interface and dry contact alarm functions, 48vdc input, VAC
single phase (L1+N+G) 50Hz sinewave output, equipped with
AC bypass, "W x "H x "D, Lbs. |
8kVA /
6.4kW |
220 |
single
phase |
50Hz
(only) |
48vdc |
| INVT |
186-1550-102600 |
8kVA/kW Rack Mount Telecom Grade Inverter, CPU controlled SPWM
technology with fault protection, local digital display, RJ45
Interface and dry contact alarm functions, 110vdc input, VAC
single phase (L1+N+G) 50Hz sinewave output, equipped with
AC bypass, "W x "H x "D, Lbs. |
8kVA /
6.4kW |
220 |
single
phase |
50Hz
(only) |
110vdc |
| INVT |
186-1550-103300 |
8kVA/kW Rack Mount Telecom Grade Inverter, CPU controlled SPWM
technology with fault protection, local digital display, RJ45
Interface and dry contact alarm functions, 220vdc input, VAC
single phase (L1+N+G) 50Hz sinewave output, equipped with
AC bypass, "W x "H x "D, Lbs. |
8kVA /
6.4kW |
220 |
single
phase |
50Hz
(only) |
220vdc |
Connect With Us
Contact Us Today For Support - 954.903.4040
