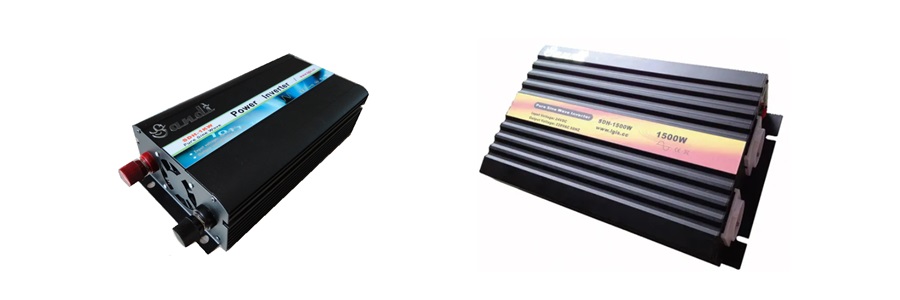

220VAC Single-Phase General Purpose Inverters Residential and Small Commercial
(The inverters shown in this section are designed so that their output has no interaction wtih the grid. See energy storage inverters for grid-interactive inverters or see Bi-Directional Power Conversion Systems for mission-critical electric applictions)

Residential/Small Commercial Applications

Single Phase (L+N+Grd)

Mfc	Specified Power Item Reference Number	Description	Power Rating	AC Output	Hz	DCV Input
Sandi	175-1010-104600	High frequency pure sine wave inverter, nom. battery connections, -phase VAC output, efficiency, each inverter: "W x "H x "D, Lbs.	0.3kW	220VAC	50/ 60Hz	12VDC
Sandi	175-1010-104700	High frequency pure sine wave inverter, nom. battery connections, -phase VAC output, efficiency, each inverter: "W x "H x "D, Lbs.	0.3kW	220VAC	50/ 60Hz	24VDC
Sandi	175-1010-104800	High frequency pure sine wave inverter, nom. battery connections, -phase VAC output, efficiency, each inverter: "W x "H x "D, Lbs.	0.3kW	220VAC	50/ 60Hz	48VDC
Sandi	175-1010-103400	1.5kW Wall-mounted high frequency sine wave inverter, 12VDC nom. battery connections, single-phase 220VAC output, 0.9 efficiency, each inverter: 5.47"W x 12.72"H x 2.83"D, 6 Lbs.	1.5kW	220VAC	50/ 60Hz	12VDC
Sandi	175-1010-103500	1.5kW Wall-mounted high frequency sine wave inverter, 24VDC nom. battery connections, single-phase 220VAC output, 0.9 efficiency, each inverter: 5.47"W x 12.72"H x 2.83"D, 6 Lbs.	1.5kW	220VAC	50/ 60Hz	24VDC
Sandi	175-1010-103600	1.5kW Wall-mounted high frequency sine wave inverter, 48VDC nom. battery connections, single-phase 220VAC output, 0.9 efficiency, each inverter: 5.47"W x 12.72"H x 2.83"D, 6 Lbs.	1.5kW	220VAC	50/ 60Hz	48VDC
Sandi	175-1010-104000	1kW Wall-mounted high frequency sine wave inverter, 12VDC nom. battery connections, single-phase 220VAC output, 0.9 efficiency, each inverter: 5.47"W x 12.72"H x 2.83"D, 6 Lbs.	1kW	220VAC	50/ 60Hz	12VDC
Sandi	175-1010-104100	1kW Wall-mounted high frequency sine wave inverter, 24VDC nom. battery connections, single-phase 220VAC output, 0.9 efficiency, each inverter: 5.47"W x 12.72"H x 2.83"D, 6 Lbs.	1kW	220VAC	50/ 60Hz	24VDC
Sandi	175-1010-104200	1kW Wall-mounted high frequency sine wave inverter, 48VDC nom. battery connections, single-phase 220VAC output, 0.9 efficiency, each inverter: 5.47"W x 12.72"H x 2.83"D, 6 Lbs.	1kW	220VAC	50/ 60Hz	48VDC
Sandi	175-1010-102800	2kW Wall-mounted high frequency sine wave inverter, 12VDC nom. battery connections, single-phase 220VAC output, 0.85 efficiency, each inverter: 7.83"W x 17.13"H x 2.87"D, 12.3 Lbs.	2kW	220VAC	50/ 60Hz	12VDC
Sandi	175-1010-102900	2kW Wall-mounted high frequency sine wave inverter, 24VDC nom. battery connections, single-phase 220VAC output, 0.88 efficiency, each inverter: 7.83"W x 17.13"H x 2.87"D, 12.3 Lbs.	2kW	220VAC	50/ 60Hz	24VDC
Sandi	175-1010-103000	2kW Wall-mounted high frequency sine wave inverter, 48VDC nom. battery connections, single-phase 220VAC output, 0.9 efficiency, each inverter: 7.83"W x 17.13"H x 2.87"D, 12.3 Lbs.	2kW	220VAC	50/ 60Hz	48VDC
Sandi	175-1010-102200	3kW Wall-mounted high frequency sine wave inverter, 12VDC nom. battery connections, single-phase 220VAC output, 0.85 efficiency, each inverter: 7.83"W x 15.91"H x 5.75"D, 18.7 Lbs.	3kW	220VAC	50/ 60Hz	12VDC
Sandi	175-1010-102300	3kW Wall-mounted high frequency sine wave inverter, 24VDC nom. battery connections, single-phase 220VAC output, 0.88 efficiency, each inverter: 7.83"W x 15.91"H x 5.75"D, 18.7 Lbs.	3kW	220VAC	50/ 60Hz	24VDC
Sandi	175-1010-102400	3kW Wall-mounted high frequency sine wave inverter, 48VDC nom. battery connections, single-phase 220VAC output, 0.9 efficiency, each inverter: 7.83"W x 15.91"H x 5.75"D, 18.7 Lbs.	3kW	220VAC	50/ 60Hz	48VDC
Sandi	175-1010-101600	4kW Wall-mounted high frequency sine wave inverter, 12VDC nom. battery connections, single-phase 220VAC output, 0.85 efficiency, each inverter: 9.45"W x 18.9"H x 5.51"D, 24.3 Lbs.	4kW	220VAC	50/ 60Hz	12VDC
Sandi	175-1010-101700	4kW Wall-mounted high frequency sine wave inverter, 24VDC nom. battery connections, single-phase 220VAC output, 0.88 efficiency, each inverter: 9.45"W x 18.9"H x 5.51"D, 24.3 Lbs.	4kW	220VAC	50/ 60Hz	24VDC
Sandi	175-1010-101800	4kW Wall-mounted high frequency sine wave inverter, 48VDC nom. battery connections, single-phase 220VAC output, 0.9 efficiency, each inverter: 9.45"W x 18.9"H x 5.51"D, 24.3 Lbs.	4kW	220VAC	50/ 60Hz	48VDC
Sandi	175-1010-101000	5kW Wall-mounted high frequency sine wave inverter, 12VDC nom. battery connections, single-phase 220VAC output, 0.85 efficiency, each inverter: 9.45"W x 21.26"H x 5.51"D, 33.1 Lbs.	5kW	220VAC	50/ 60Hz	12VDC
Sandi	175-1010-101100	5kW Wall-mounted high frequency sine wave inverter, 24VDC nom. battery connections, single-phase 220VAC output, 0.88 efficiency, each inverter: 9.45"W x 21.26"H x 5.51"D, 33.1 Lbs.	5kW	220VAC	50/ 60Hz	24VDC
Sandi	175-1010-101200	5kW Wall-mounted high frequency sine wave inverter, 48VDC nom. battery connections, single-phase 220VAC output, 0.9 efficiency, each inverter: 9.45"W x 21.26"H x 5.51"D, 33.1 Lbs.	5kW	220VAC	50/ 60Hz	48VDC
Sandi	175-1010-100400	6kW Wall-mounted high frequency sine wave inverter, 12VDC nom. battery connections, single-phase 220VAC output, 0.85 efficiency, each inverter: 9.45"W x 21.26"H x 8.66"D, 36.4 Lbs.	6kW	220VAC	50/ 60Hz	12VDC
Sandi	175-1010-100500	6kW Wall-mounted high frequency sine wave inverter, 24VDC nom. battery connections, single-phase 220VAC output, 0.88 efficiency, each inverter: 9.45"W x 21.26"H x 8.66"D, 36.4 Lbs.	6kW	220VAC	50/ 60Hz	24VDC
Sandi	175-1010-100600	6kW Wall-mounted high frequency sine wave inverter, 48VDC nom. battery connections, single-phase 220VAC output, 0.9 efficiency, each inverter: 9.45"W x 21.26"H x 8.66"D, 36.4 Lbs.	6kW	220VAC	50/ 60Hz	48VDC
