Accessores for Nickel Cadmium (NiCd) Batteries

Protective equipment kit P/N 08-00132-01 (1) Apron for electrolyte protection (80x100cm) (1) Storage box for protective kit (2) Eye wash with pH neutral solution (200ml) (5) Protective gloves, pair (1) Protective goggles (5) Protective shoe cover, pair

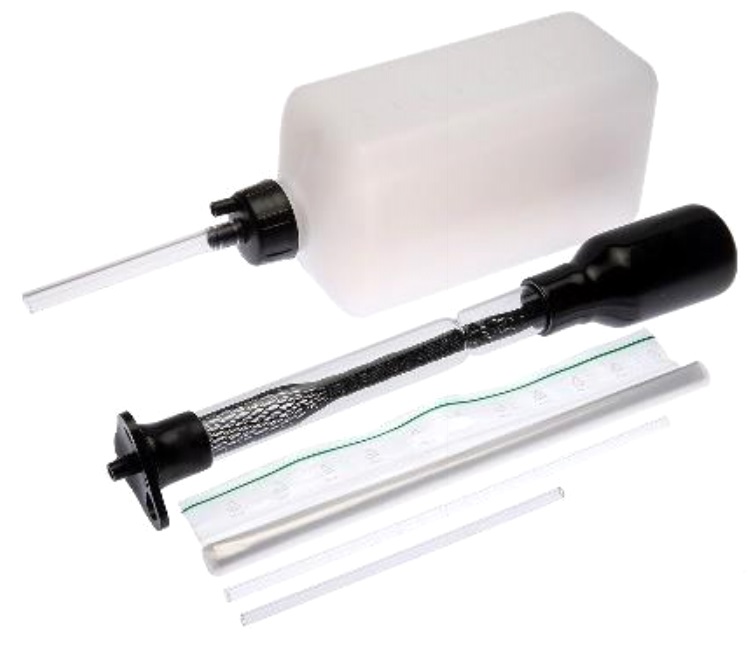

Electrolyte testing kit P/N 08-00171-01 (1) Testing tube for electrolyte level (1) Electrolyte hydrometer, range 1,08 - 1,30 g/l (1) Plastic bottle 1 litre (electrolyte) (1) Plastic zip-lock bag 1 litre

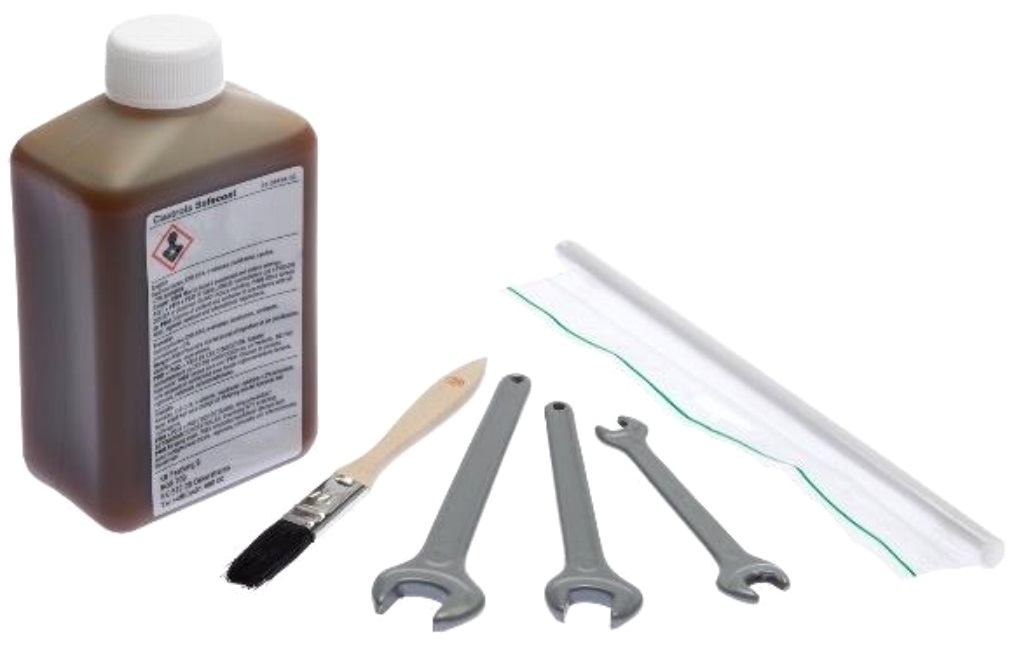

Spanner kit P/N 08-00172-05 (1) Brush (1) Anti-corrosion oil (0,5 litre), protective agent (1) Single-ended spanner SW 13mm, insulated (1) Single-ended spanner SW 16mm, insulated (1) Double-ended spanner SW 8/10mm, insulated (1) Plastic zip-lock bag (1 litre)

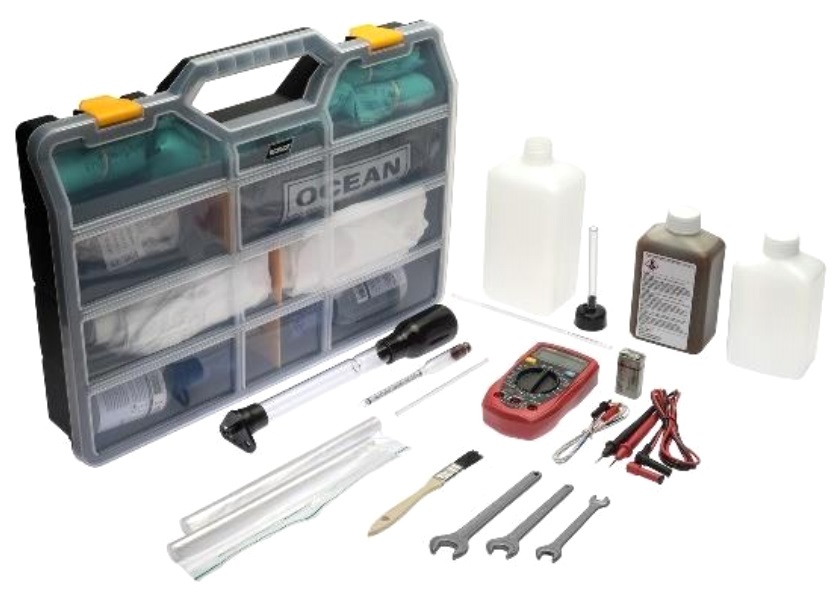

Complete installation & commissioning kit P/N 08-00174-01 (1 kit) Protective equipment kit (08-00132-01) (1 kit) Electrolyte testing kit (08-00171-01) (1 kit) Spanner set kit (08-00172-01) (1 pc) Digital multimeter (01-01925-01)

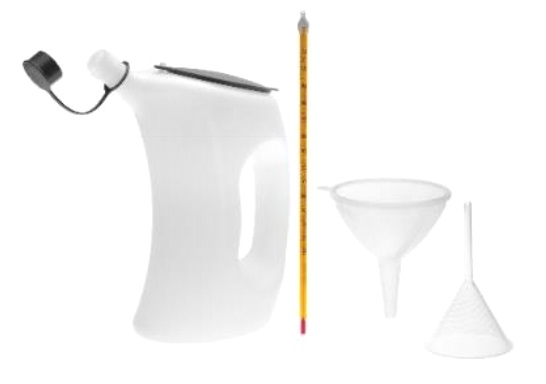

Electrolyte filling kit P/N 08-00175-01 (1 pc) Plastic funnel (large) (1 pc) Plastic funnel small) (1 pc) Plastic jug with lid and plug (2 litres) (1 pc) Glass thermometer, temperature range -20 to +110°C

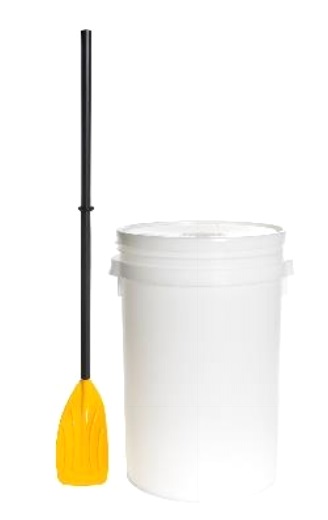

Electrolyte mixing kit P/N 08-00176-01 (1 pc) Mixing tank (50 litres) (1 pc) Tank lid (1 pc) Stirring paddle

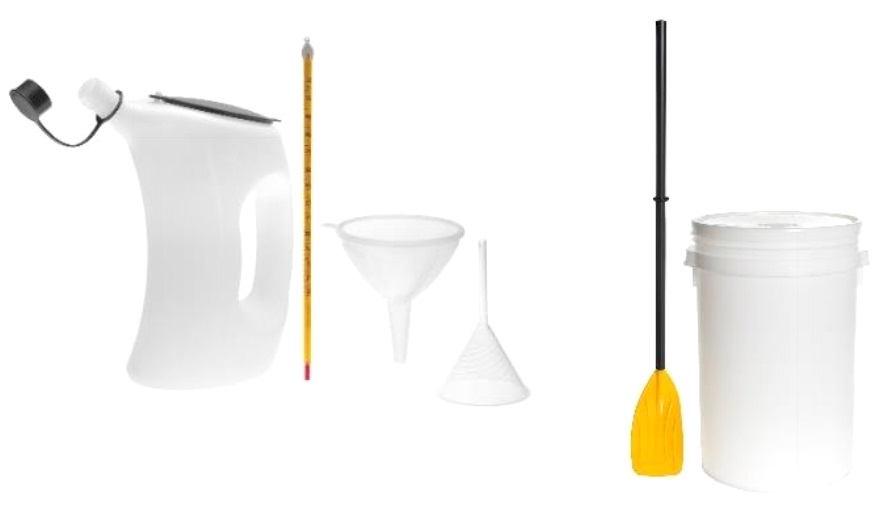

Complete electrolyte preparation kit P/N 08-00177-01 (1 kit) Electrolyte filling kit (08-00175-01) (1 kit) Electrolyte mixing kit (08-00176-01)

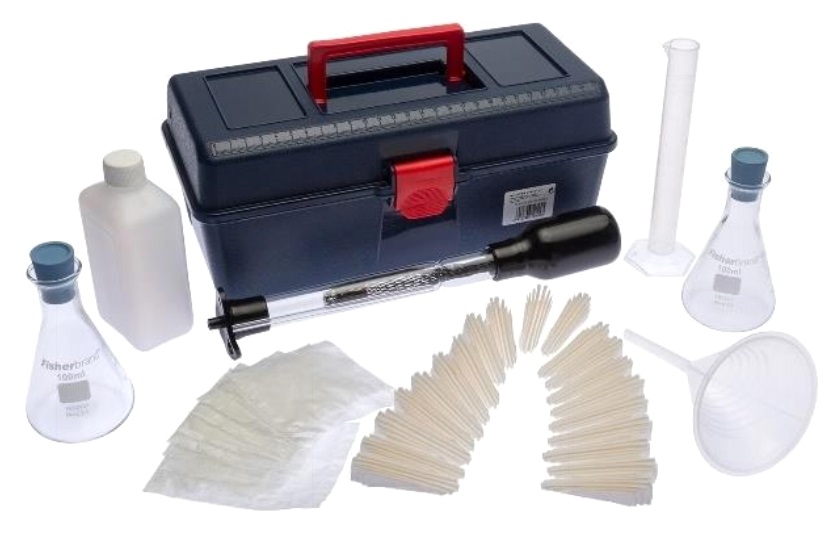

Carbonate testing kit P/N 08-00009-01 (1) Accessory box (1) Plastic bottle (200ml) (1) Plastic graduated cylinder (25ml) (1) Plastic funnel f80 (2) Erlenmeyer flask (100ml) with rubber plug (20) Filter V100 (10) Plastic bags with 8g Soda (BaCl2) powder (1) Hydrometer

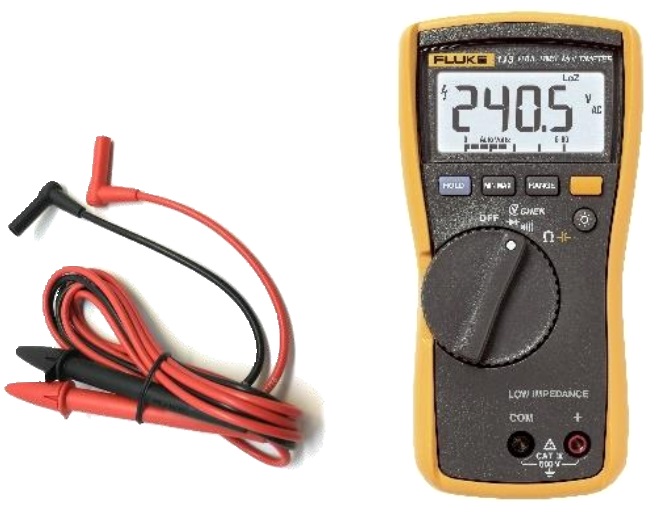

Digital multimeter P/N 01-60651-01 Fluke 113 Utility meter with VCHEK™ TL75 Test leads Voltage AC/DC 0.001 – 600V Diode testing (2V) Resistance 0,1Ω – 60kΩ Capacitance 1 – 9999µF Category CAT III 600V and category IV 300V standards

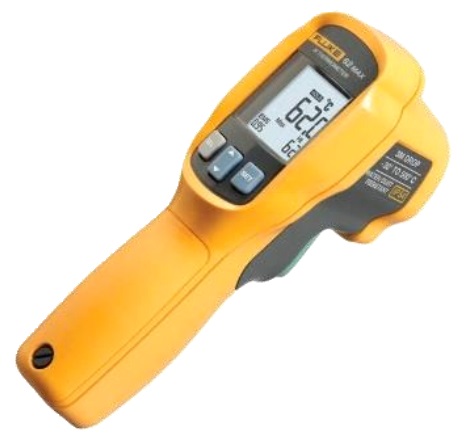

Infrared thermometer P/N 01-60652-02 Fluke 62 Max mini Infrared thermometer Infrared thermometer for measuring temperatures from -30 to 500°C (-22 to 932°F). Provides a 10:1 distance to spot ratio. IP 54 (IEC 60529) Size 175x85x75mm (6.88x3.34x2.95in) Weight 255g (8.99oz)

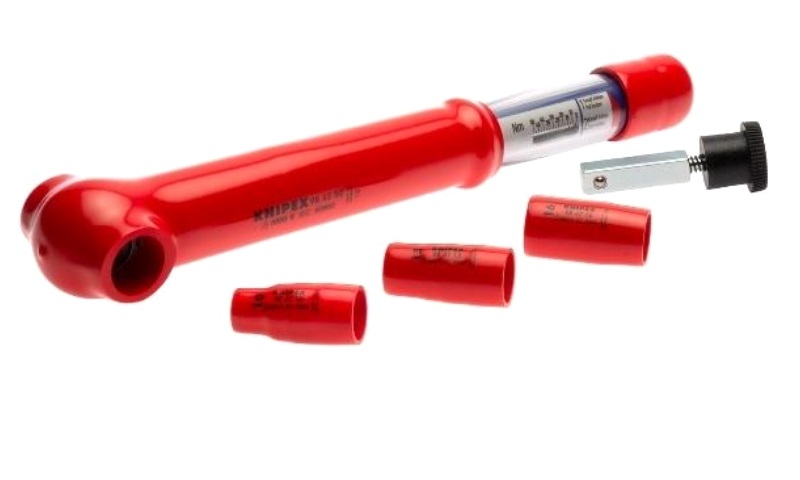

Torque wrench set P/N 08-00178-01 High quality adjustable Knipex torque wrench with sockets Insulated 1000V EN/IEC 60900 (1) Torque wrench 5-50 Nm (1/2") (1) Socket SW10 (1/2") (1) Socket SW13 (1/2") (1) Socket SW16 (1/2")
Spanner rings High quality Knipex spanner ring Insulated 1000V EN/IEC 60900 Spanner ring SW 10mm - 01-60653-01 Spanner ring SW 13mm - 01-60653-02 Spanner ring SW 16mm - 01-60653-03

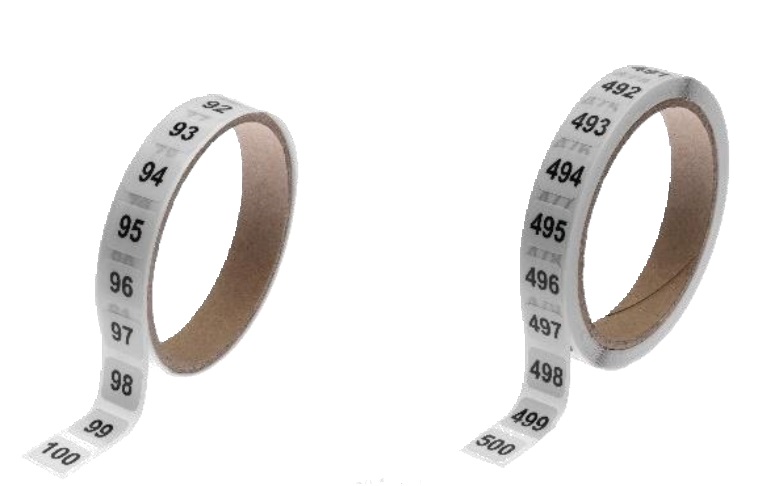

Cell numbering Adhesive set for marking cells, black digits on white background. Label size 14x14mm, letter size 7mm delivered on coil. Numbering kit #1 – 50 (01-01978-31) Numbering kit #1 – 100 (01-01978-32) Numbering kit #1 – 200 (01-01979-31) Numbering kit #1 – 350 (01-01979-32) Numbering kit #1 – 500 (01-01979-33)
Topping-up equipment P/N 08-00195-02 Complete kit to top-up cells with distilled/de-ionized water (1) Water cart, 37.5 litres (1) Charger 120V/230V (exchangeable AC plug) (1) Filling pistol (with spacer tube kit, fits all our cells)

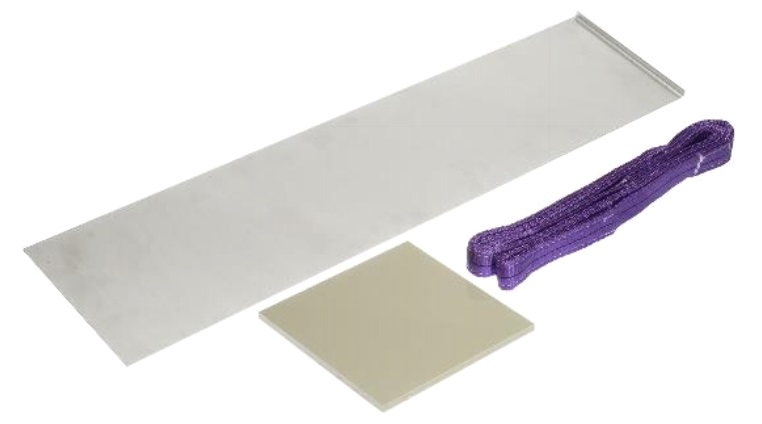

Cell replacement kit P/N 31-11204-01 Suitible for replacing cells in a compact rack, where the rows are not stepped (1) Sliding plate 800x195x2mm (3) Filling plates 195x195x8mm (1) Sling 2m

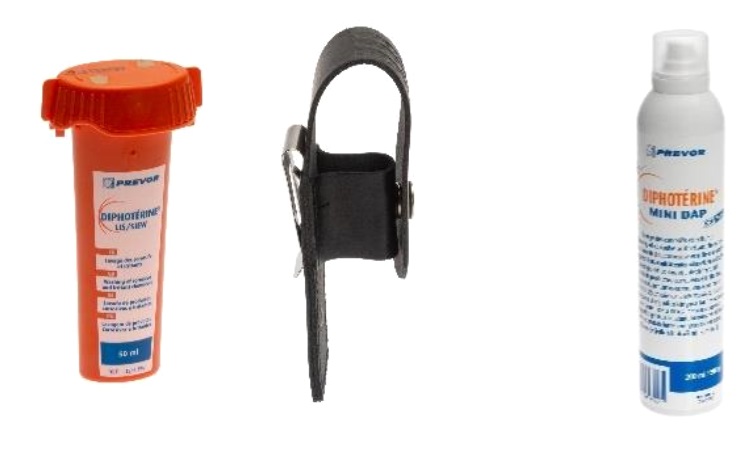

Diphoterine® Solution is an emergency rinsing solution for splashes of chemicals. Rapid use in case of contact with electrolyte (KOH) quickly eliminates secondary treatment of burn injuries. (01-52009-75) SIEW 50ml, eye treatment (01-52009-76) Clipped leather holster for SIEW 50ml (01-52009-78) Mini DAP 200ml, for smaller body parts
Terminal plate P/N 31-10736-xx Collecting bar to be installed on the top of the cells to change the number of outgoing cables and/or change cable cross section (up to 120mm2). Terminal plates +/- (set of two, one for each polarity) Available in various dimensions to fit Saft Nickel Cadmium cells with Ni-plated copper. Thickness: 4mm

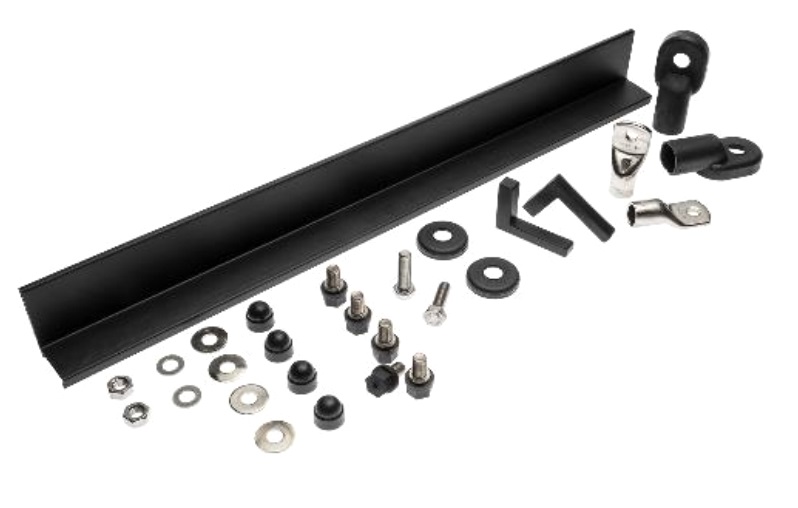

Terminal plate cover P/N 31-10129-xx Complete terminal plate with cover and bolts for assembling. End lugs (35 – 120mm2) Washers, DIN137b Bolts, SIS 2343 Nuts, SIS 2343 Insulated post screws Cover and cover gabels

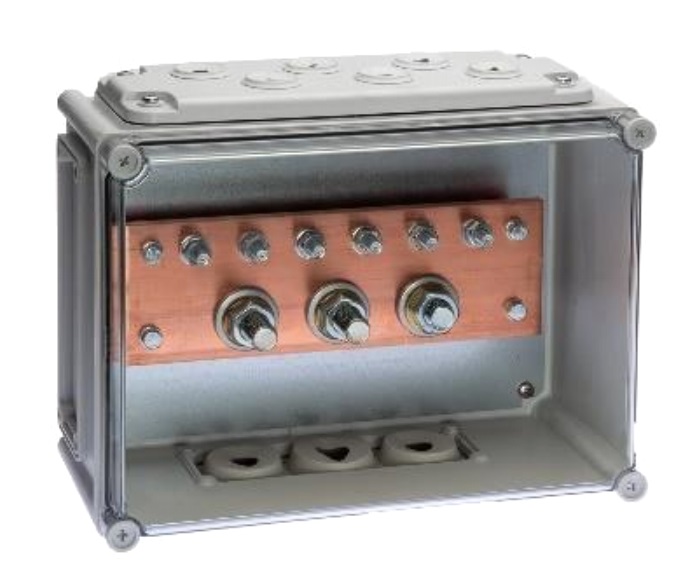

Connection box P/N 08-10010-01 Solution for connecting external cables of 95 to 400 mm². Designed for 6 cables (max 120mm2) from cells and up 3 outgoing cables. All cables between the cells and the connection box are supplied when specified. Size: 380x280x120mm (LxWxD) P/N for these cables are 31-10116-01 – 31-10128-61 Length between 110 – 10000mm are available. End lugs for outgoing connection, between 95 – 400mm²
Busbar 31-10874-01 Solution for connecting external cables of 120mm² to 500mm². Designed for 12 cables from cells and up 3 outgoing cables. All cables between the cells and the Busbar are supplied when specified. Length between 110 – 10000mm are available. End lugs (M12) for outgoing connection are available between 100 – 500mm².

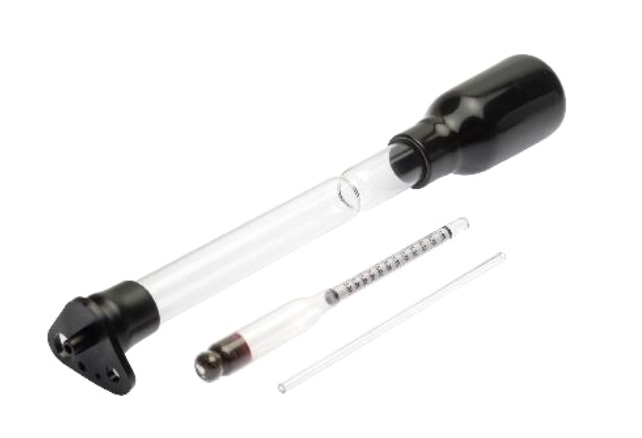

Electrolyte hydrometer P/N 01-01980-01 Glass hydrometer for measuring electrolyte specific gravity during mixing. Range 1,08 - 1,30 g/l

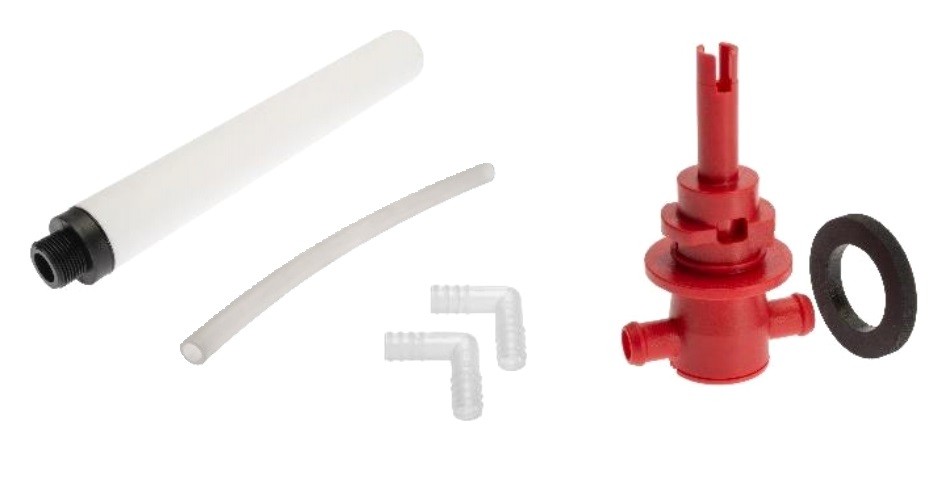

Central water filling system For usage when one single connection is needed to top-up the complete cells in the battery with water Vent Flame Arrestor Hose (m) Hose nipple Bracket L-joint I-joint Coupling (male/female)
