Description

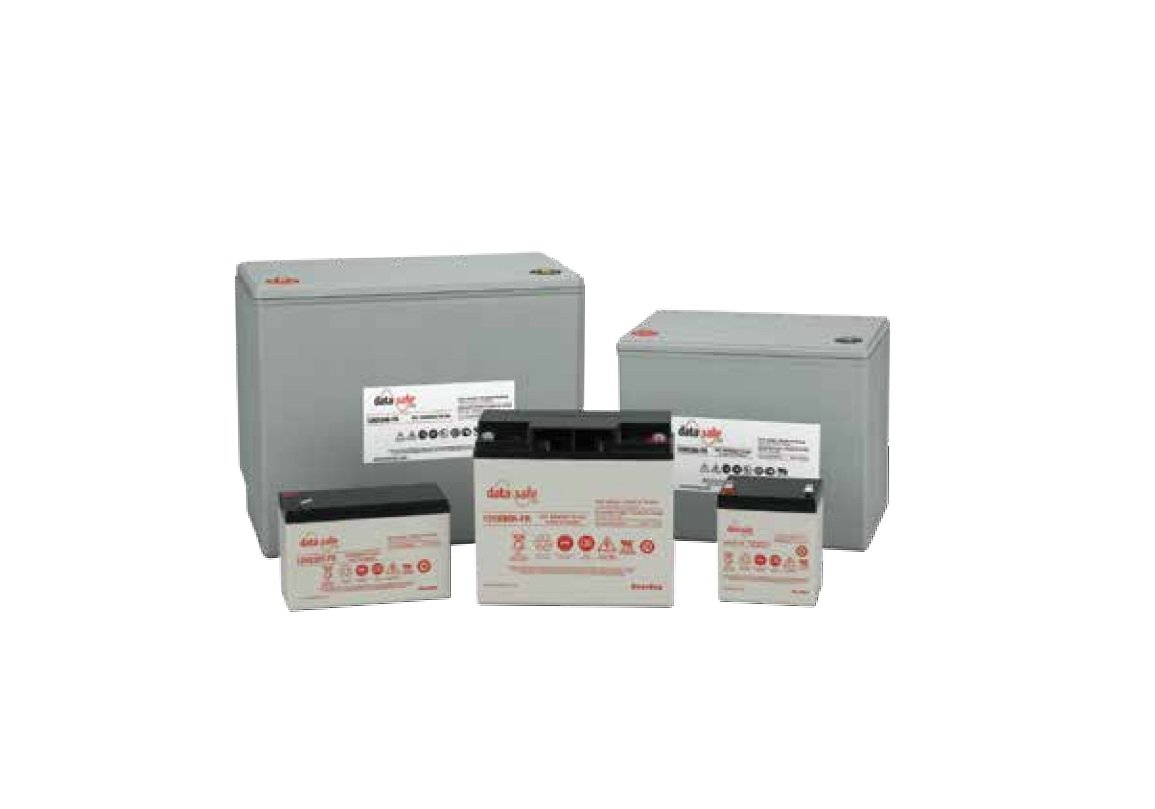

UPS High Rate Multi-Cell VRLA Battery, Lead Calcium AGM, ABS case, 12V with (2) M6 Brass Threaded Insert terminals [204 WPC @15 min to 1.67vpc],[44Ah (c8)] 8.9″L x 5.5″W x 8.1″H (max ht), 43 Lbs
12HX205FR
Lead-Acid AGM Float Service Standby – High Rate limited cycle Stationary Batteries, 12V, 0 Ah (c20), Regulated Valve, lead calcium grid plate
Additional information
| Weight | 43 lbs |
|---|---|
| Dimensions | 8.9 × 5.5 × 8.1 in |
| Product Discontinued? | No |
| Availability | Current production line |
| HTS Code | 8507.20.0040 |
| Battery Chemistry | Lead-Acid |
| Battery Composition | AGM |
| Battery Plate Type | lead calcium grid |
| Case Material | ABS |
| Battery Valve Style | Regulated |
| LOI Rating | UL-94-V0-Flame-Retardant |
| Cells per Battery | 6 |
| Battery Nominal DC Volts | 12 |
| Terminal Type | M6 Brass Threaded Insert |
| Terminal Location | Top |
| BCI Reference | 22NF |
| Length inches | 8.9 |
| Width inches | 5.5 |
| Height inches | 8.1 |
| Weight in Lbs | 43 |
| WPC (10min to 1.67vpc @ 25c) | 273 |
| WPC (15min to 1.67vpc @ 25c) | 204 |
| WPC (20min to 1.67vpc @ 25c) | 164 |
| 240-cell kW rating (10min) | 65.52 |
| 240-cell kW rating (15min) | 48.96 |
| 240-cell kW rating (20min) | 39.36 |
| AH (c8) | 44 |
| Capacity Bracket (10 Min WPC) | 250 – 324 WPC (10 min) |
| Capacity Bracket (15 Min WPC) | 180 – 249 WPC (15 min) |
| Capacity Bracket (20 Min WPC) | 130 – 179 WPC (15 min) |
| Capacity Bracket (C8 Ah) | 20 – 49 Ah (C8) |
| Ambient Temp. Resilience | Regulated |
| Battery Thermal Mass Level | Medium |
| Designed Rate of Discharge | High-Rate |
| Battery Cycle Class | Float Service Standby |
| Cycling Resilience | limited cycle |
| Common Applications | Data Center UPS Systems |
