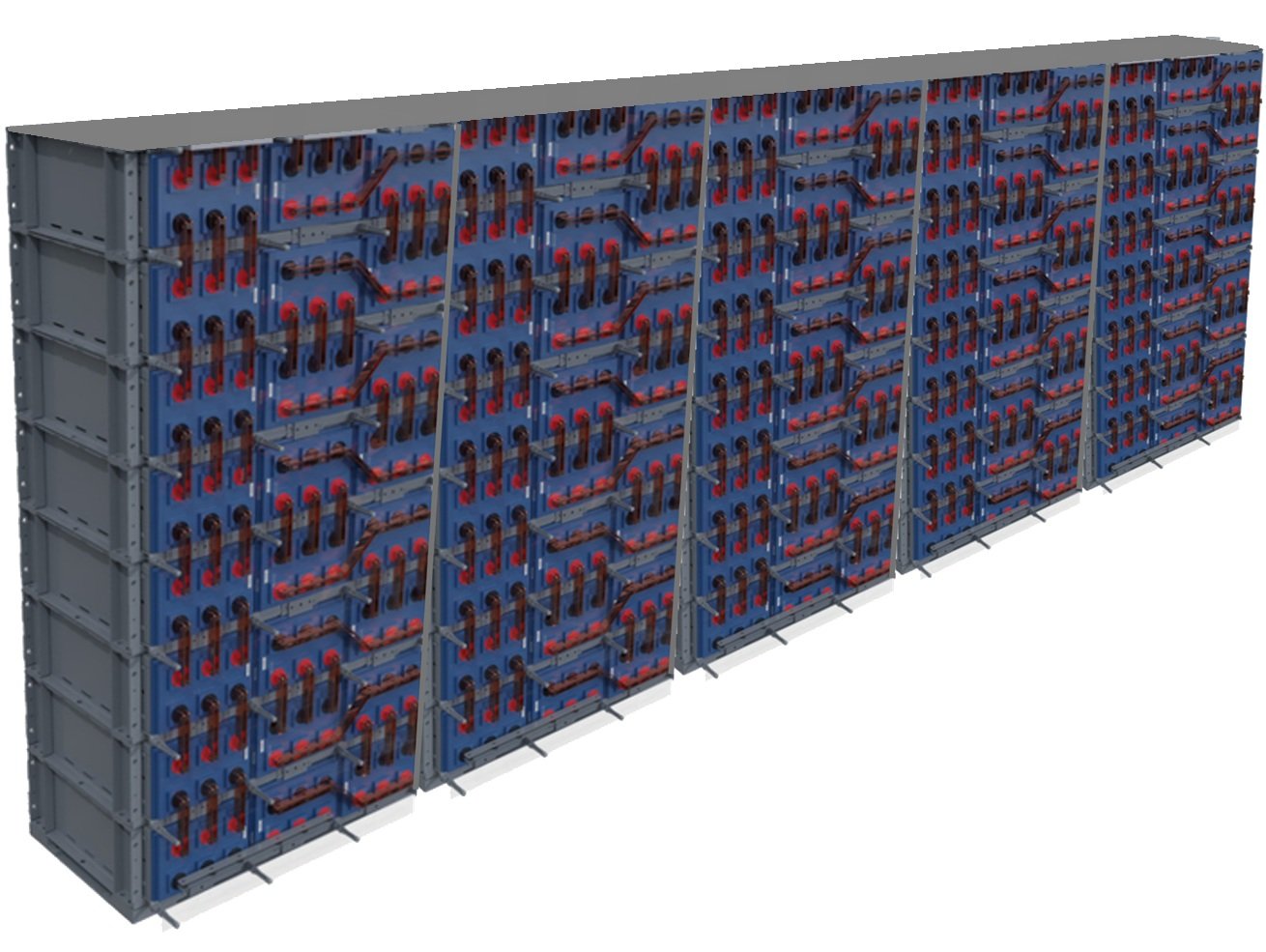

UPS VRLA Modular Battery String, Lead Calcium AGM, configured as 5 stacks of 8 modules, each module w/ (6) VRLA series-connected cells per stackable steel module, Polypropylene case, 480V with (4) Square lead-tin copper post terminals per cell [2108 WPC @15 min to 1.67vpc],[1050Ah (c10), 1032Ah (c8)] 322.85″W x 23.5″D x 78.04″H (max ht), 43920 Lbs
UPS VRLA Modular Battery String, Lead Calcium AGM, configured as 5 stacks of 8 modules, each module w/ (6) VRLA series-connected cells per stackable steel module, Polypropylene case, 480V with (4) Square lead-tin copper post terminals per cell [2108 WPC @15 min to 1.67vpc],[1050Ah (c10), 1032Ah (c8)] 322.85″W x 23.5″D x 78.04″H (max ht), 43920 Lbs
| Weight | 43920 lbs |
|---|---|
| Dimensions | 64.57 × 322.85 × 78.04 in |
| Product Discontinued | No |
| Product Availability | current production offering |
| Superseded By | |
| HTS Code | 8507.20.0090 |
| Battery Chemistry Type | AGM VRLA |
| Case Material | Polypropylene |
| LOI Rating | FR |
| Cells Per Battery | 240 |
| Battery or System nominal DC voltage | 480 |
| Terminal Type | Square lead-tin copper post |
| Terminal Location | Front |
| BCI Reference | |
| 15 minute WPC To1.67vpc @ 25DegC | 2108 |
| Ah (c8) to 1.75vpc @ 25DegC | 1032 |
| Ah (c10) to 1.75vpc @ 25DegC | 1050 |
| Ah (c20) to 1.75vpc @ 25DegC | |
| CCA | 219.2 |
| Cycle Rating to 50% DOD | |
| Cycle Rating to 80% DOD |
