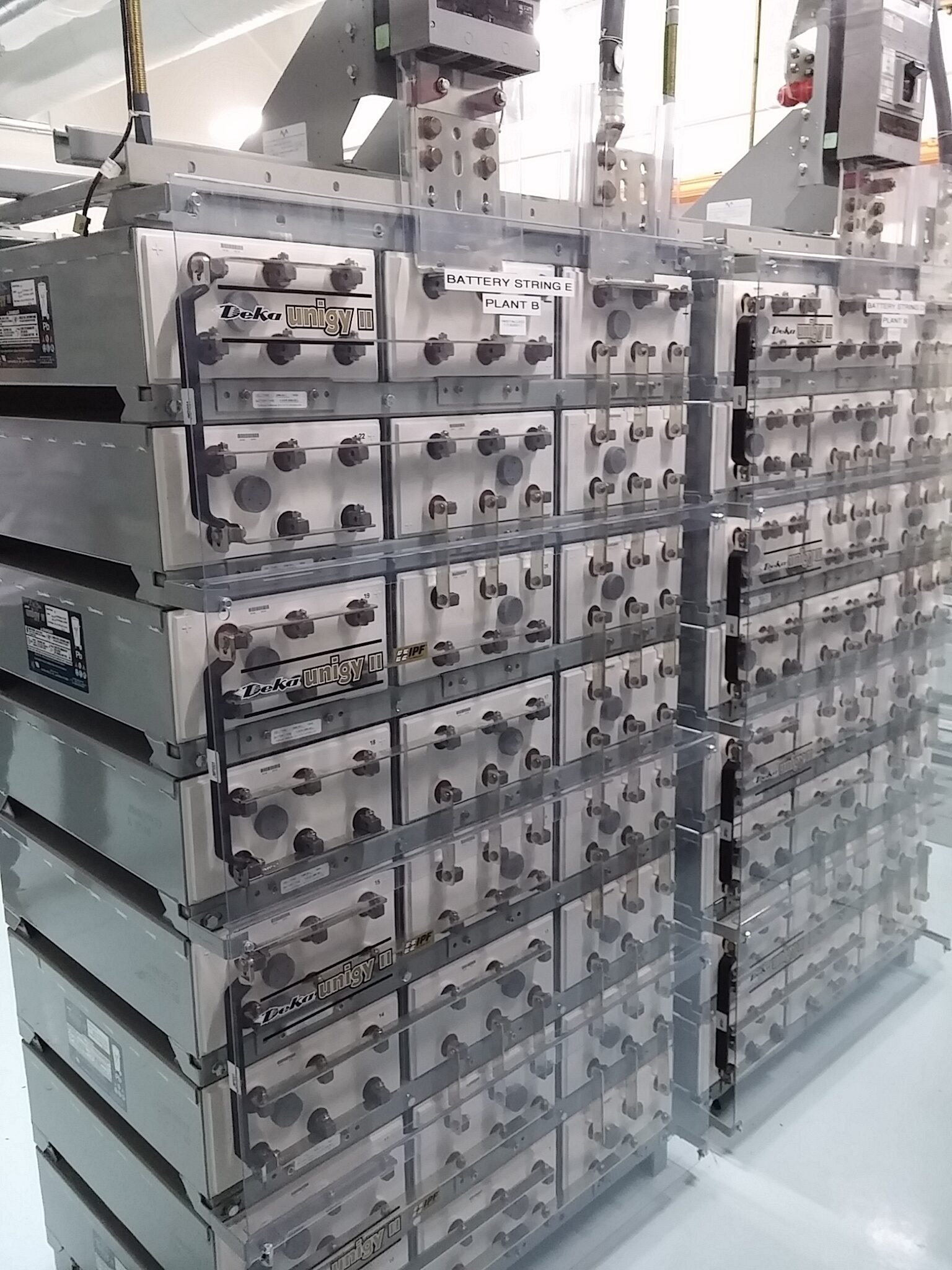

Multi Purpose Long Life – Multi Rate battery string using multiple single cells contained in steel stackable modules, Lead Calcium VRLA AGM, 480vdc battery system [ WPC @15 min to 1.67vpc],[2140Ah (c20), 1890Ah (c10), 1800Ah (c8)], 31.12″D x 546.4″W x 65.56″H (max ht), 90360 Lbs
Multi Purpose Long Life – Multi Rate battery string using multiple single cells contained in steel stackable modules, Lead Calcium VRLA AGM, 480vdc battery system [ WPC @15 min to 1.67vpc],[2140Ah (c20), 1890Ah (c10), 1800Ah (c8)], 31.12″D x 546.4″W x 65.56″H (max ht), 90360 Lbs
| Weight | 90360 lbs |
|---|---|
| Dimensions | 546.4 × 546.4 × 65.56 in |
| Product Discontinued | No |
| Product Availability | current production offering |
| Superseded By | |
| HTS Code | 8507.20.0090 |
| Battery Chemistry Type | AGM VRLA |
| Case Material | |
| LOI Rating | FR |
| Cells Per Battery | 240 |
| Battery or System nominal DC voltage | 480 |
| Terminal Type | |
| Terminal Location | Front |
| BCI Reference | |
| 15 minute WPC To1.67vpc @ 25DegC | |
| Ah (c8) to 1.75vpc @ 25DegC | 1800 |
| Ah (c10) to 1.75vpc @ 25DegC | 1890 |
| Ah (c20) to 1.75vpc @ 25DegC | 2140 |
| CCA | |
| Cycle Rating to 50% DOD | 1800 |
| Cycle Rating to 80% DOD | 1200 |
