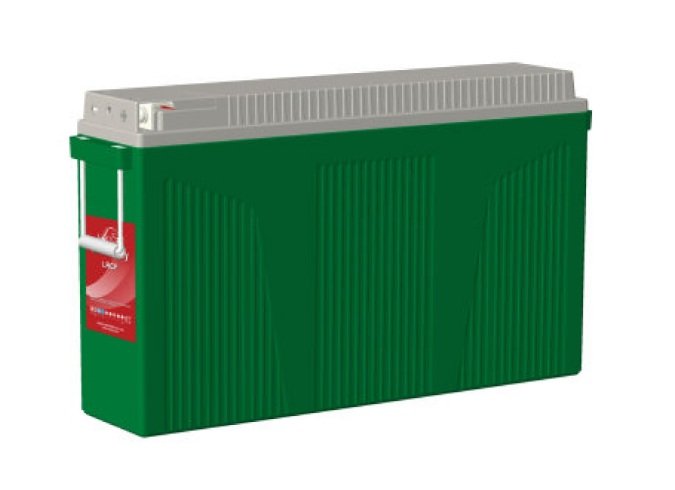

Lead Acid AGM Medium Cycle – Medium Rate Regular to Frequent Cycling , 12V, 147.2 Ah (c20), Regulated Valve, lead calcium nano carbon grid plate
Extreme Cycle Life Battery, Advanced Carbon Deep Cycle AGM cycling battery, 12VDC, 3700 cycles to 50% DOD, (0.9 kWH cycled capacity = 50% DOD), ABS case, e/w (2) T11 (M8 top with M8 front extension) terminals, 147.2 Ah(c20), 150 AH(c24), 155.04 Ah(c48), 159 Ah(c100), [1.7664 kWH (c20), 1.8 kWH (c24), 1.86048 kWH (c48) (based on nominal 2.00VPC)], 4.92″W x 12.4″H (max ht) x 21.65″D, 121.3 Lbs
| Weight | 121.3 lbs |
|---|---|
| Dimensions | 21.65 × 4.92 × 12.4 in |
| Product Discontinued? | |
| Availability | |
| HTS Code | |
| Battery Chemistry | |
| Battery Composition | |
| Battery Plate Type | |
| Case Material | |
| Battery Valve Style | |
| LOI Rating | |
| Cells per Battery | |
| Battery Nominal DC Volts | |
| Terminal Type | |
| Terminal Location | |
| BCI Reference | |
| Length inches | |
| Width inches | |
| Height inches | |
| Depth inches | |
| Weight in Lbs | |
| AH (c5) | |
| AH (c8) | |
| AH (c10) | |
| AH (c20) | |
| 50% DOD Cycle rating | |
| Capacity Bracket (C5 Ah) | |
| Capacity Bracket (C8 Ah) | |
| Capacity Bracket (C10 Ah) | |
| Capacity Bracket (C20 Ah) | |
| Capacity Bracket (C100 Ah) | |
| Ambient Temp. Resilience | |
| Battery Thermal Mass Level | |
| Designed Rate of Discharge | |
| Battery Cycle Class | |
| Cycling Resilience | |
| Common Applications | Industrial Renewable, Material Handling Equipment, Mining, Oil, Shipboard |
