Description

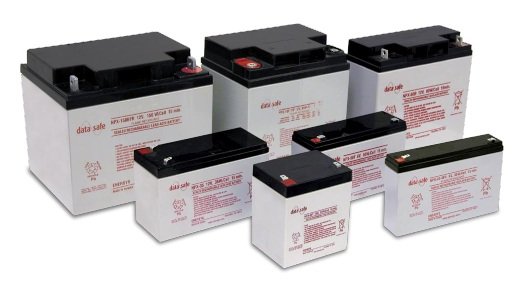

UPS – High Rate Multi-Cell VRLA Battery, Lead Calcium AGM, ABS Resin case, 12V with (2) M5 threaded insert terminals [135 WPC @15 min to 1.67vpc],[33Ah (c20)], 7.76″L x 5.16″W x 6.22″H (max ht), 26.32 Lbs
NPX-135R (EnerSys)
UPS – High Rate Multi-Cell VRLA Battery, Lead Calcium AGM, ABS Resin case, 12V with (2) M5 threaded insert terminals [135 WPC @15 min to 1.67vpc],[33Ah (c20)], 7.76″L x 5.16″W x 6.22″H (max ht), 26.32 Lbs
Additional information
| Weight | 26.32 lbs |
|---|---|
| Dimensions | 7.76 × 5.16 × 6.22 in |
| Product Discontinued | No |
| Product Availability | current production offering |
| Superseded By | |
| HTS Code | 8507.20.0040 |
| Battery Chemistry Type | AGM VRLA |
| Case Material | ABS Resin |
| LOI Rating | Non FR |
| Cells Per Battery | 6 |
| Battery or System nominal DC voltage | 12 |
| Terminal Type | M5 threaded insert |
| Terminal Location | Top |
| BCI Reference | |
| 15 minute WPC To1.67vpc @ 25DegC | 135 |
| Ah (c8) to 1.75vpc @ 25DegC | |
| Ah (c10) to 1.75vpc @ 25DegC | |
| Ah (c20) to 1.75vpc @ 25DegC | 33 |
| CCA | |
| Cycle Rating to 50% DOD | |
| Cycle Rating to 80% DOD |
