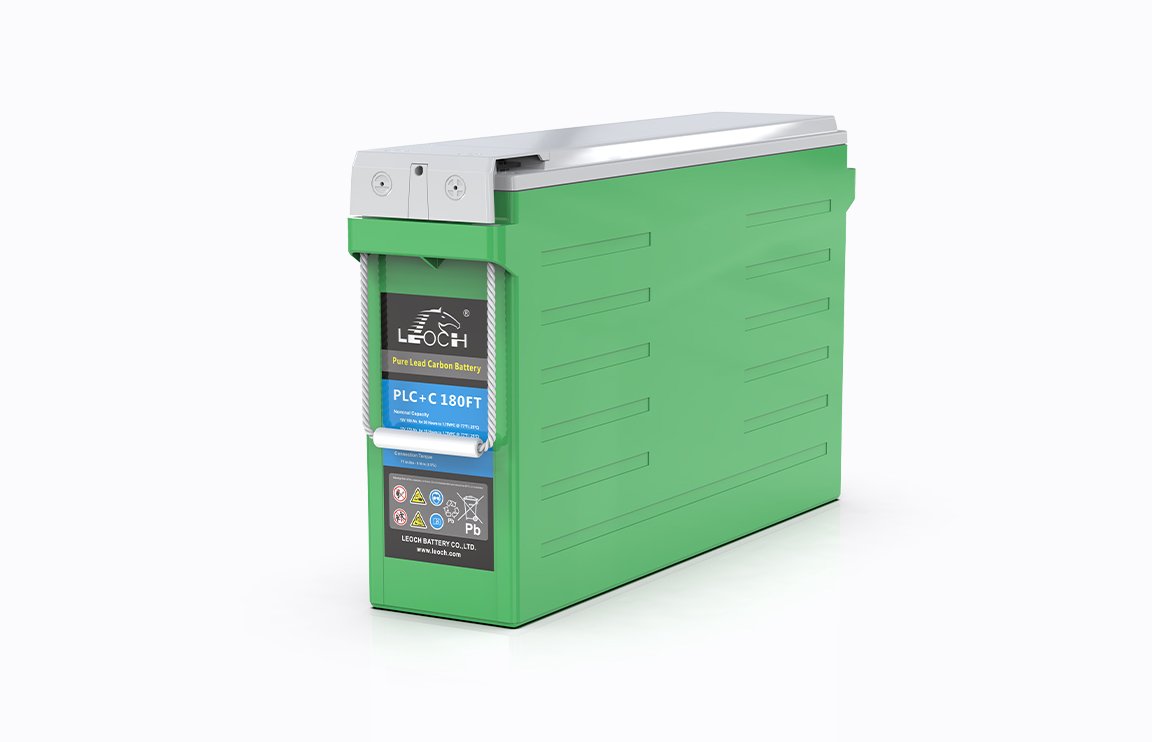

Lead Acid AGM Deep Cycle – Medium Rate Moderate to Regular Cycling Stationary Batteries, 12V, 181 Ah (c20), Regulated Valve, Pure Lead + Carbon plate
Extreme Cycle Life Battery, Advanced Carbon Deep Cycle AGM cycling battery, 12VDC, 3000 cycles to 50% DOD, (1.15776 kWH cycled capacity = 50% DOD), ABS case, e/w (2) M8 threaded insert to front adapter M6 flag Top or Front terminals, 181 Ah(c20), 192.96 AH(c24), 203.04 Ah(c48), 200 Ah(c100), [2.172 kWH (c20), 2.31552 kWH (c24), 2.43648 kWH (c48) (based on nominal 2.00VPC)], 4.96″W x 12.6″H (max ht) x 22.05″D, 127 Lbs
| Weight | 127 lbs |
|---|---|
| Dimensions | 22.05 × 4.96 × 12.6 in |
| Product Discontinued? | No |
| Availability | normal warehouse stcok |
| HTS Code | 8507.20.0040 |
| Battery Chemistry | Lead Acid |
| Battery Composition | AGM |
| Battery Plate Type | Pure Lead + Carbon |
| Case Material | ABS |
| Battery Valve Style | Regulated |
| LOI Rating | UL-94-V0-Flame-Retardant |
| Cells per Battery | 6 |
| Battery Nominal DC Volts | 12 |
| Terminal Type | M8 threaded insert to front adapter M6 flag |
| Terminal Location | Top or Front |
| BCI Reference | FT-SW-190 |
| Length inches | 22.05 |
| Width inches | 4.96 |
| Height inches | 12.6 |
| Depth inches | 22.05 |
| Weight in Lbs | 127 |
| AH (c5) | 156.5 |
| AH (c8) | 167.2 |
| AH (c10) | 171 |
| AH (c20) | 181 |
| 50% DOD Cycle rating | 3000 |
| Capacity Bracket (C5 Ah) | 100 – 199 Ah (C8) |
| Capacity Bracket (C8 Ah) | 100 – 199 Ah (C8) |
| Capacity Bracket (C10 Ah) | 100 – 199 Ah (C10) |
| Capacity Bracket (C20 Ah) | 100 – 199 Ah (C20) |
| Capacity Bracket (C100 Ah) | 200 – 349 Ah (C100) |
| Ambient Temp. Resilience | Elevated |
| Battery Thermal Mass Level | Medium |
| Designed Rate of Discharge | Medium Rate |
| Battery Cycle Class | Deep Cycle |
| Cycling Resilience | Moderate to Regular Cycling |
| Common Applications | Industrial Renewable, Material Handling Equipment, Mining, Oil, Shipboard |
